Customized Fiber Optical Patch Cord LC SC FC ST UPC APC Duplex SM MM OM1 OM2 OM3 OM4

Name: Customized Fiber Optical Patch Cord LC SC FC ST UPC APC Duplex SM MM OM1 OM2 OM3 OM4
Brand: KEXINT
Price: 1.13 USD

China Customized Fiber Optical Patch Cord LC SC FC ST UPC APC Duplex SM MM OM1 OM2 OM3 OM4 wholesale

Brand Name : KEXINT

Model Number : Duplex patch cord

Certification : CE/ROHS/ISO9001

Place of Origin : CHINA

MOQ : 50+pcs

Price : 1.13+$+piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram

Supply Ability : 100000+PCS+Day

Delivery Time : 8

Packaging Details : box

Connector Type : SC FC LC ST

Fiber Type : SM/MM/OM3/OM4

Length : 0.5m/1m/2m/5m/customized

Jacket Material : LSZH/PVC

Cable Diameter : 2.0/3.0mm

Package : Carton Box

Operating Temperature (°C) : -40℃~85℃

Contact Now

Fiber optic patch cables are ideal for supporting high speed telecommunication network fiber applications. They are manufactured and tested in compliance with TIA 604 (FOCIS), IEC 61754 and YD/T industry standards. OM1, OM2, OM3, OM4, OM5 or OS2 fiber types are available to meet the demand of Gigabit Ethernet, 10 Gigabit Ethernet and high speed Fiber Channel. Every termination is through rigorous parameter test to ensure the highest network performance.

Customized Fiber Optical Patch Cord LC SC FC ST UPC APC Duplex SM MM OM1 OM2 OM3 OM4

Features:
◈ Low Insertion Loss

◈ High Return Loss

◈ Good Repeatability

◈ Good Exchangeability

◈ High Temperature Stabilit

Applications:

◈ Telecom or Data communications

◈ Military industry, Medical

◈ CATV, LAN, WAN, Test & Measurement

◈ Systems Integration for Railway, Metro

◈ Fiber to the Indoor (FTTX) Test

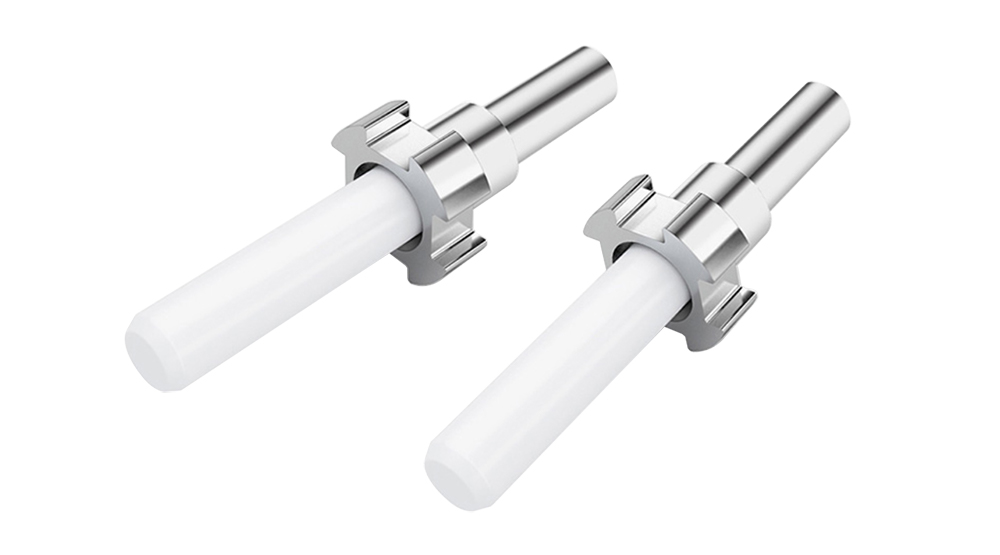

Zirconia Ceramic Ferrule


◈ High-precision ceramic ferrules are used to ensure the stability and durability of optical fiber connectors.

◈ The precision ferrules can reach up to 1000 times insertion lifespan.

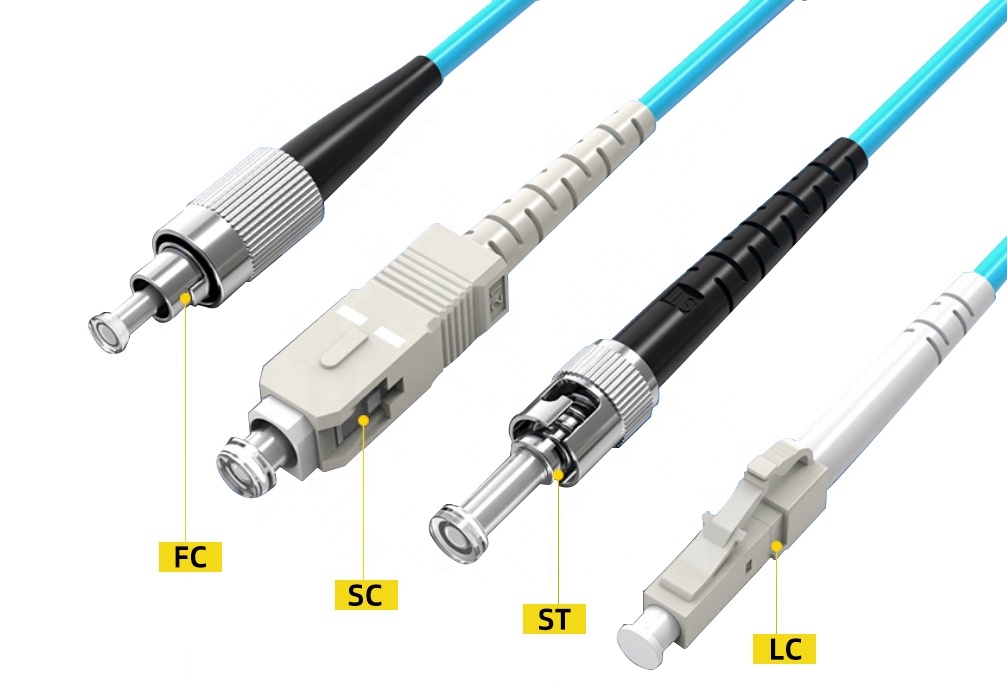

Optional Connectors


◈ Tough and corrosion-resistant, not easily deformed.

◈ Safe and reliable, easy to use, strong applicability.

◈ Various connectors are available, LC/SC/FC/ST/LSH, UPC/APC polish, to
suit the needs of different applications.

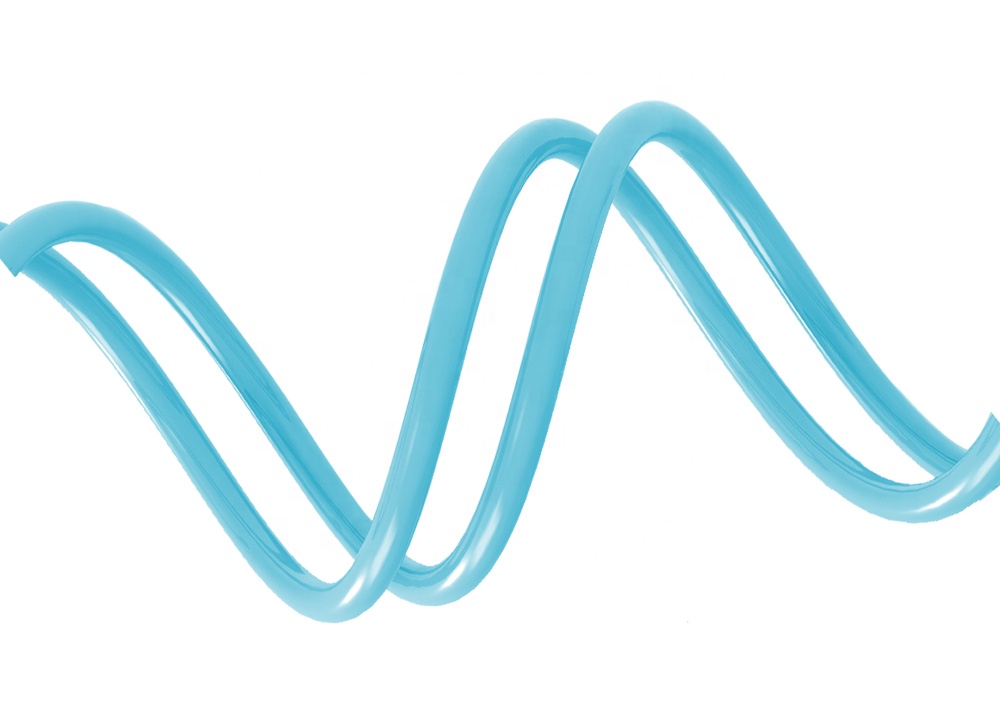

Tensile and Bend Twist

◈ Fiber cable allows tighter cable bend and twist for slack storage and routing.

 ◈ The pull-resistant cable prevents cable
◈breaking and prolongs the service life.

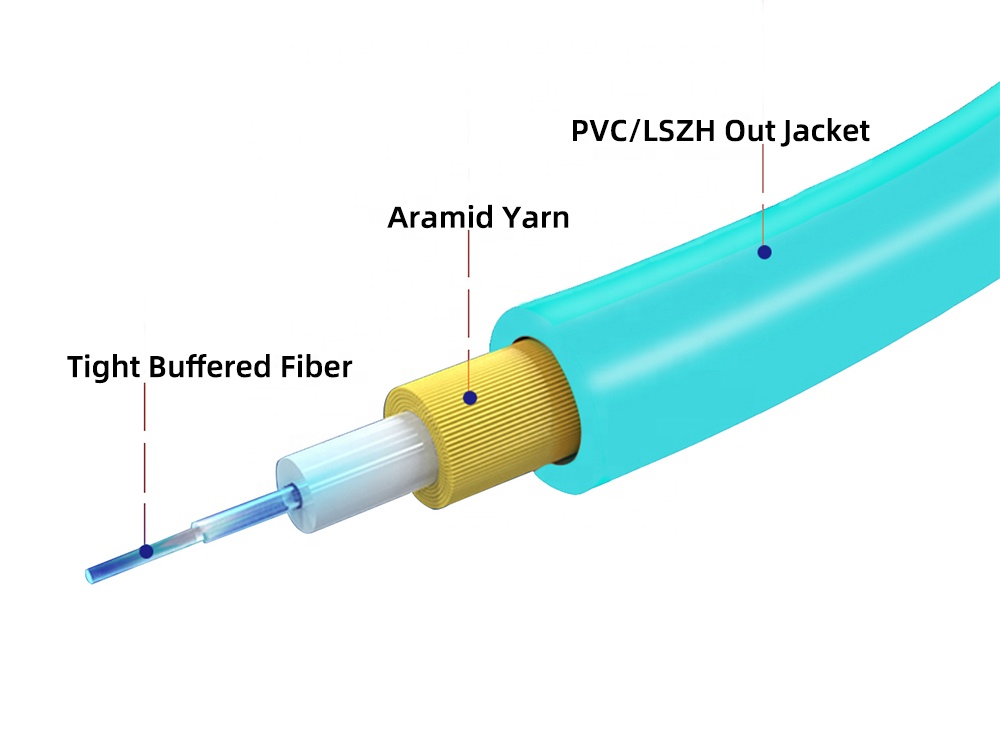

◈ Fiber cable diameter 2.0mm and 3.0mm optional.

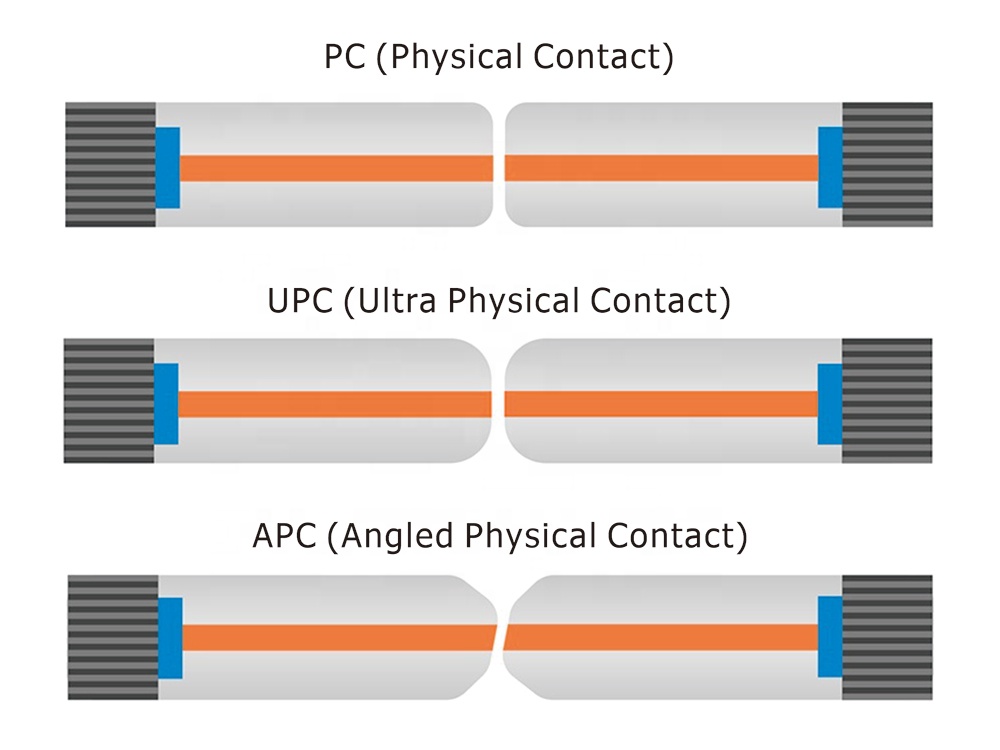

Polish Type


PC suited for telecom operator equipment.

UPC suited for ethernet network equipment, devies, media converters and fiber switches.

APC suited for high bandwidth applications and long distance links, such as FTTX.PC/UPC is generally blue, APC is green.


Maximum Bandwidths and Distance of Different Multimode Fibers

Fiber Type	Core Diameter	bandwidth		1Gbps Distance		10Gbps Distance
Fiber Type	Core Diameter	850nm Mhz*km	1300nm Mhz*km	850nm	1300nm	850nm	1300nm
OM1	62.5 µm	200	500	275m	550m	33m	300m
OM2	50 µm	700	500	750m	550m	150m	300m
OM3	50 µm	1500	500	1000m	550m	300m	300m
OM4	50 µm	3500	500	1000m	550m	550m	550m


Our advantages:

Good reply: Your inquiry related to our products or price will be replied within 24 hours.

OEM&ODM: We can help you to design or put your logo and company name into products.

Remote Technical support&Full Technical Document

Warranty: 1 year warranty( While the warranty is not responsible for those broken by violence or updated with other brands.)

English software, English Indicator

Professional, Very competitive price

Large Stock, Fast Delivery

Quality Assurance
