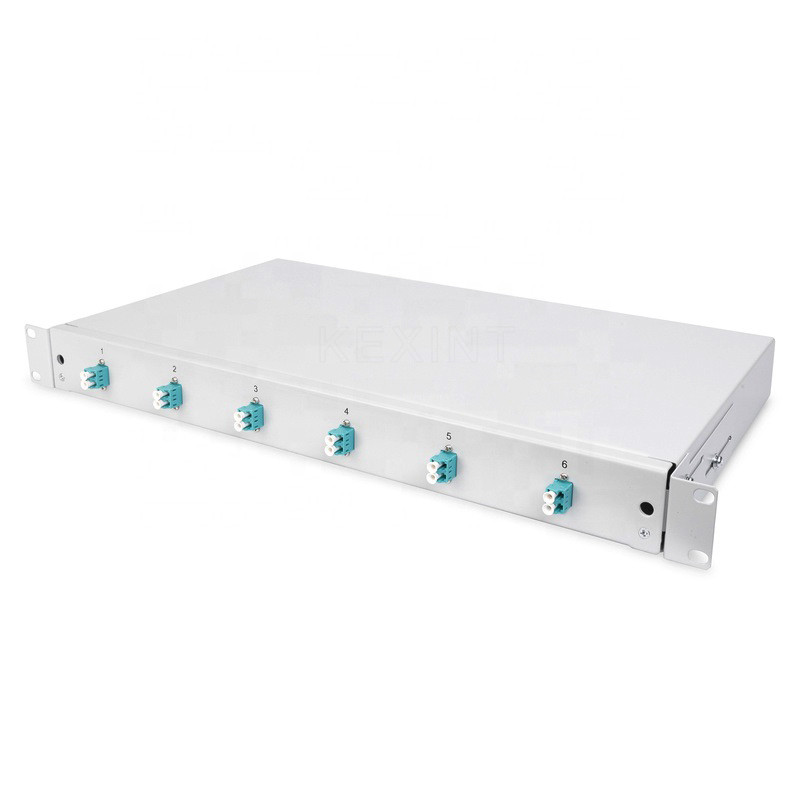

FTTH 6 To 12 Core Fiber Optic Patch Panel With 6 Simplex Or Duplex Adapters Pigtails

Name: FTTH 6 To 12 Core Fiber Optic Patch Panel With 6 Simplex Or Duplex Adapters Pigtails
Brand: KEXINT
Price: 26.32 USD

China FTTH 6 To 12 Core Fiber Optic Patch Panel With 6 Simplex Or Duplex Adapters Pigtails wholesale

Brand Name : KEXINT

Model Number : KXT-U-11

Certification : CE/ROHS/ISO9001

Place of Origin : China

MOQ : 500 pieces

Price : USD 26.32~30.75 pieces

Delivery Time : 7-10 work days

Packaging Details : CARTONS

Use : FTTH

Capacity : 4 Cores

optic cable ports : 4-20mm

Operating temperature : -40℃~85℃

Network : None

Color : White Or Customized

Package : Carton Box

Connector Type : LC Duplex or SC

Material : Cold Rolled Steel Plate

Contact Now

Products Description

Optical fiber distribution frame (ODF) is used for the formation and distribution of the backbone backbone optical cable in the optical fiber communication system, which can easily realize the connection, distribution and scheduling of optical fiber lines.
With the increasing degree of network integration, there has been an optical-digital hybrid patch panel that integrates ODF,
DDF,and power distribution units. It is suitable for small-to-medium-sized distribution of fiber-to-the-cell,
fiber-to-the-building,remote modules and wireless base stations. Line system.

1U ODF needs Equipped

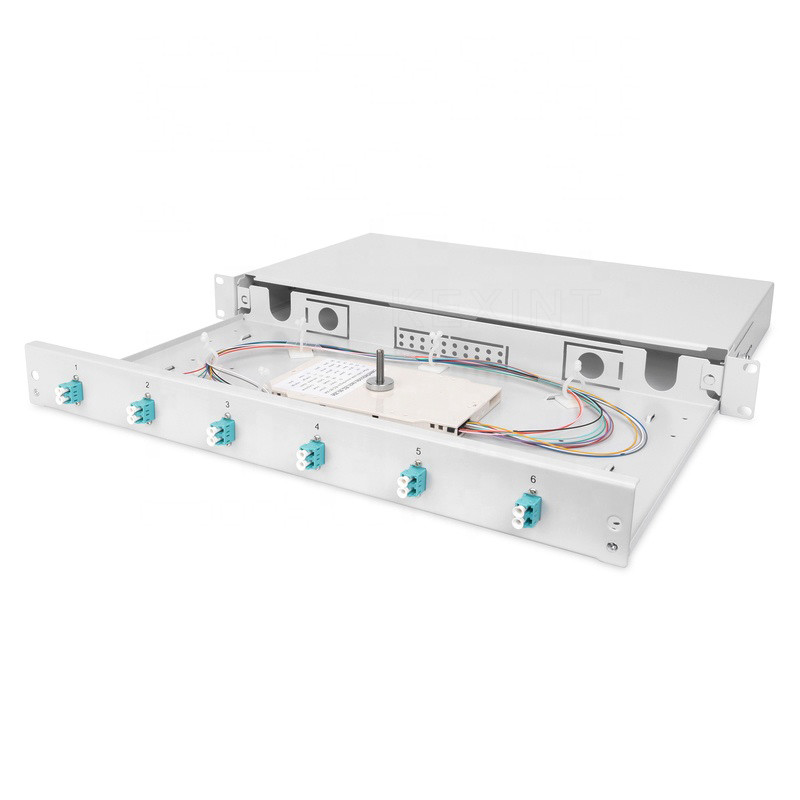

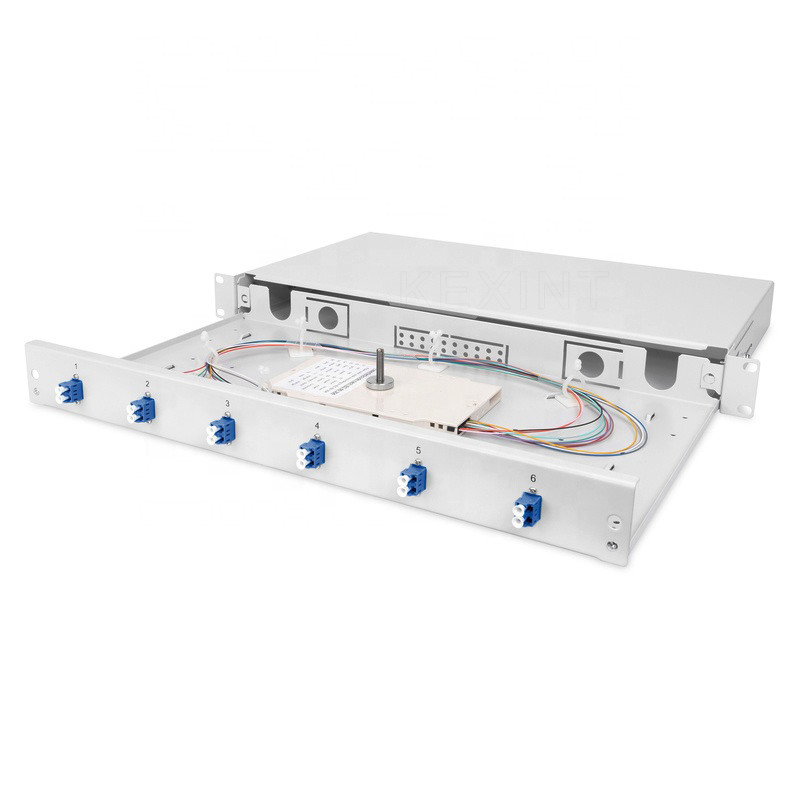

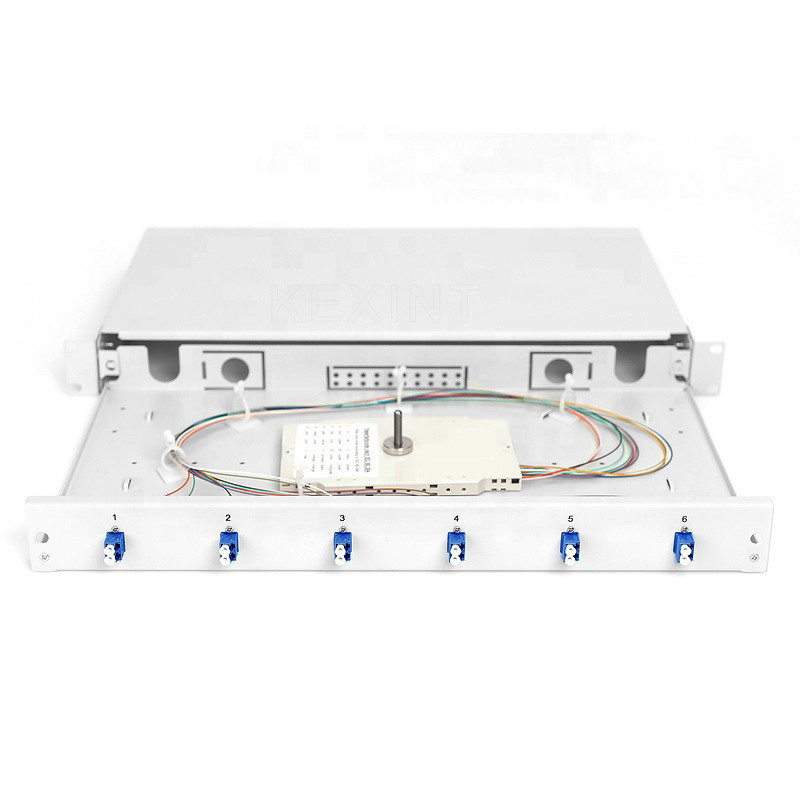

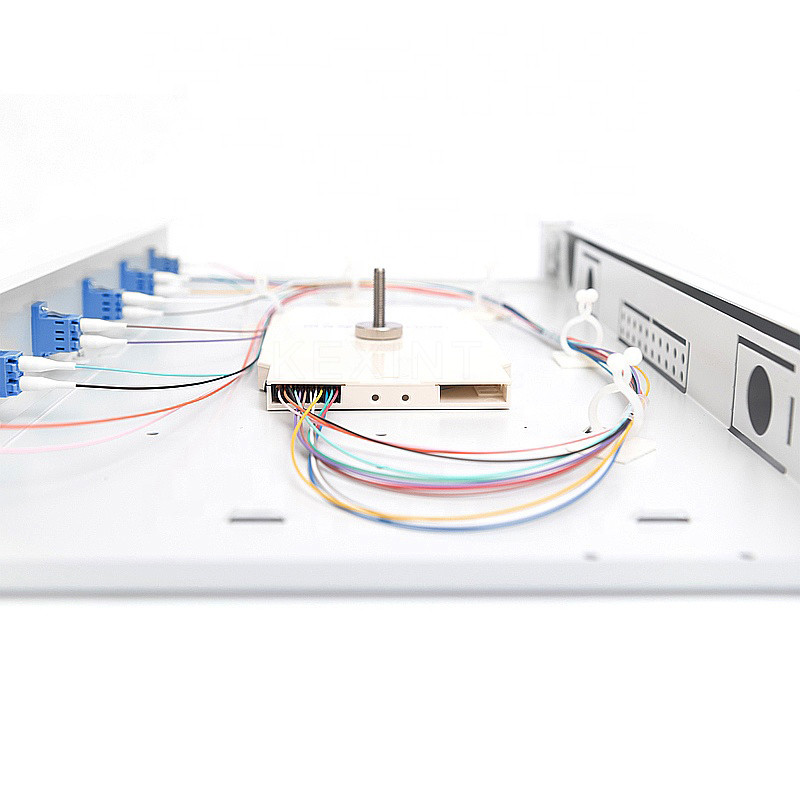

*Completely prefabricated, fiber pigtails exposed and inserted into the splice cassette(s)
* Colored pigtails
* Couplers with zirconia ceramic ferrule

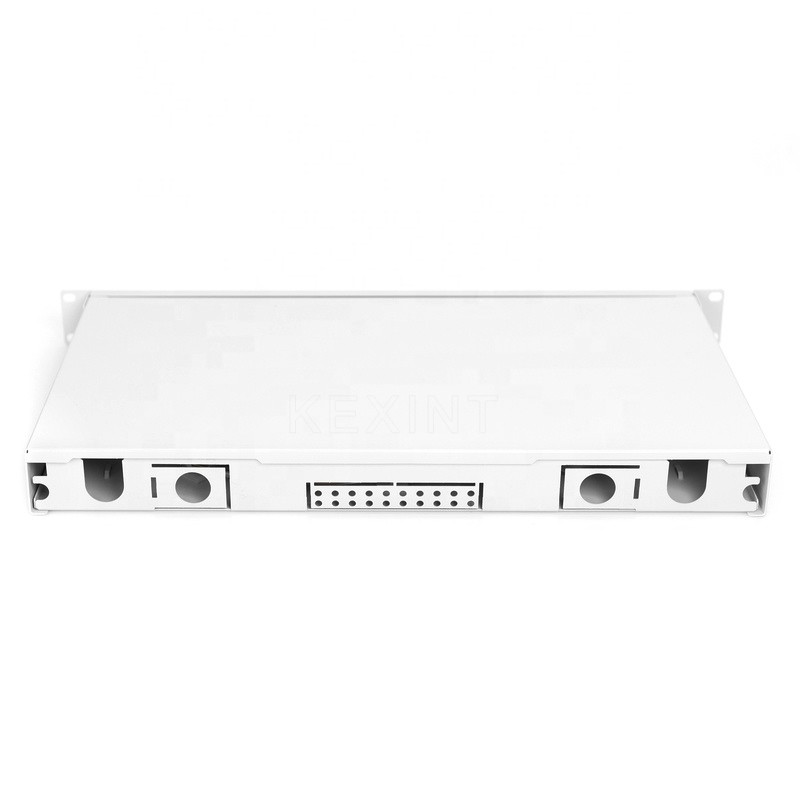

* Metal box was made of 1.0 mm steel sheet, varnished
* 1 height unit (44.45 mm)
* 483mm width (19")
* 240-250mm depth
* M20/M25 screw, cassette, cassette cover and strain relief included

Application:

The product can be used on the terminal of the optical cables, different types and structures, the diameter of which are within 18mm(f) tray.

Product use:

To protect the function of the fiber core and fiber play.The optical fiber distribution frame can be installed separately, which can be individually assembled into an optical fiber distribution frame, and also can be arranged in a cabinet / shelf with the digital distribution unit and the audio distribution unit. Constitute a comprehensive distribution frame. The device has the advantages of flexible configuration, easy installation and use, easy maintenance and easy management. It is an indispensable device for fiber optic communication, optical fiber network terminals, or relay points to realize fiber splicing, fiber hopping, optical fiber cable splicing and access.

Specification:

We support fiber capacity	6/12 cores
Fiber Port	FC,SC,ST and LC
Working temperature	-10°C-+40°C
Storage temperature	-25°C~+55°C
Relative humidity	≤ 85%(+30°C)
Atmospheric pressure	70Kpa-106Kpa
Nominal operating wavelength	850nm, 1310nm,1550nm
Insertion loss	≤0.5dB
Return loss	PC ≥40dB,UPC 2 50dB,APC 2 60dB
Electrical strength	23KV(DC)1min without breakdown
nsulation resistance	≥1000MQ/500V(DC)
Life	≥1000 times
Application range	Small and medium-sized wiring system for fiber to the cell, fiber to thebuilding, remote module office and wireless base station

item	value
Model Number	KXT-U-11
Type	Fiber optic patch panel
Connector Type	LC Duplex or SC
Capacity	6-12 Core
Material	Cold Rolled steel Plate
color	White Or Customized
MoQ	1Piece
optic cable ports	4-20mm
Fiber Type	SM MM
Package	Carton Box
Certification	CEROHS/ISO9001
Operating temperature	-40°C-85°C
